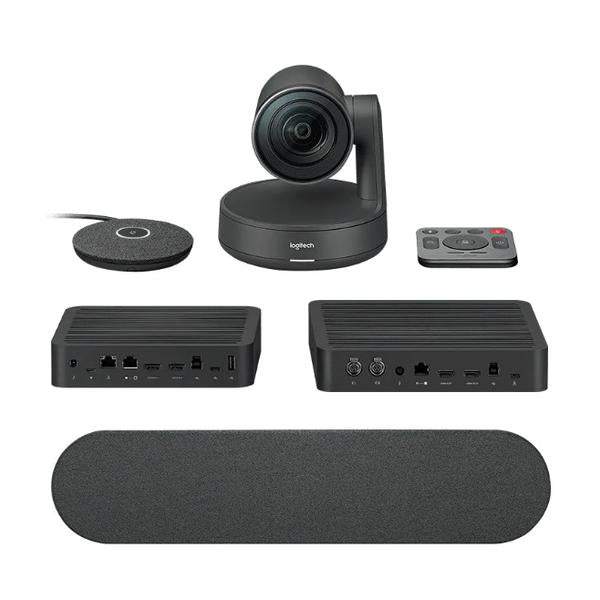

Logitech Rally System ConferenceCam, 960-001237

Note: This is the full set that includes:
✔️ Rally Conference camera
✔️ Rally Speaker x 1
✔️ Rally Microphone pod x 1
✔️ Display Hub
✔️ Table Hub

Premium PTZ camera with Ultra-HD imaging system and automatic camera control

• RightSense technology automates a better user experience
• Advanced optics frame every participant with amazing clarity
• Sleek industrial design for any professional meeting space
• Modular style allows for additional speakers/ microphones when required

Rally Camera

• Height x Width x Depth:
• 182.5 mm x 152 mm x 152 mm

Rally Speaker

• Height x Width x Depth:
• 103 mm x 449 mm x 80 mm

Rally Mic Pod

• Height x Width x Depth:
• 21 mm x 102 mm x 102 mm

Rally Display Hub

• Height x Width x Depth:
• 40 mm x 206 mm x 179 mm

Rally Table Hub

• Height x Width x Depth:
• 40 mm x 176 mm x 138 mm

Operating Systems

• Windows® 7, Windows 8.1 or Windows 10
• macOS 10.10 or higher
• Chrome OS

Resolutions higher than 1080p

• • Windows 8.1 or higher or macOS 10.10 or higher
  • USB 3.0 port and Type C cable
  • Compatible software

Additional Software

• RightSight automatic camera control

CAMERA

• Ultra-HD imaging system supports:
  • 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • 1080p, 720p at 30fps and 60 fps

• Smooth motorized pan, tilt and zoom

• Pan: ±90°

• Tilt: +50° / -90°

• 15x HD zoom

• 90° field of view

• Autofocus

• 3 camera presets

• Kensington security slot

• Video mute/unmute LED indicator

• Standard tripod thread

• Lens parks at -90° in sleep mode for assured privacy

RALLY MIC POD

• Pickup range: 4.5 m diameter
  Four omnidirectional microphones forming eight acoustic beams
  AEC (Acoustic Echo Cancellation)
  VAD (Voice Activity Detector)
  Background noise suppression
  Mute button with LED status indicator
  Captive 2.95 m 12-pin cable
  Daisy chain up to 7 Rally Mic Pods
  Frequency response: 90 Hz – 16 kHz
  Sensitivity: >-27 dB +/-1 dB @ 1 Pa
  Microphone data rate: 48 kHz

  Recommended # of participants:
  Rally (one Mic Pod): 10
  Additional participants per Mic Pod: 6
  Recommended participants for Rally with 7 Mic Pods: 46

RALLY SPEAKER

• High-performance 76 mm driver with rare-earth magnet
  Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
  Mini XLR cable connects to Rally Display Hub for both signal and power
  Speaker volume 95 dB SPL @1 W, 100 dB SPL @7.5 W, both +/-2 dB at ½ meter
  Sensitivity: 95+/-2 dB SPL at ½ meter
  Distortion: 200 Hz–300 Hz < 2.5%, 300 Hz–10 kHz < 1%@7.5 W
  Speaker sampling rate: 48 kHz

RALLY TABLE HUB

• Single CAT6A cable connection to Rally Display Hub ( 5 m cable included, supports customer-supplied cables up to 50 m)
  Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
  12 Pin connector for Rally Mic Pod
  HDMI Type A passthrough to Display Hub (x2)
  USB Type C
  USB Type A (reserved for future capability)
  USB Type B (connects to meeting room computer)
  RJ45 (reserved for future capability)
  Power input

RALLY DISPLAY HUB

• HDMI Type A (x2) (connects to displays)
  USB C (connects to Rally Camera)
  USB Type B (connects to meeting room computer)
  RJ45 (connects to Table Hub)
  Mini XLR (x2)
  Powers one or two Rally Speakers
  Power input

REMOTE CONTROL

• RF remote control (line of sight not required)

• CR2032 batteries (included)

RIGHTSENSE™ TECHNOLOGIES

• RightLight™ with Wide Dynamic Range (WDR)

• RightSight™ automatic camera control

CABLES / POWER

• Camera to Display Hub
  2 m USB 3.1 Type C to USB Type C 3.1

• Conference Room Computer to Display or Table Hub
  2 m USB 3.1 Type A to USB Type B

• Display Hub to Table Hub
  5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m

• Display Hub to Speaker (x2)
  2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m

• Conference Room Computer to Displays (x2)
  2 m HDMI A

• Mic Pod
  2.95 m: Hardwired with 12 pin connector

• Power Outlets to Power Supplies (x2)
  1 m

• Power Supplies to Table Hub / Display Hub (x2)
  1.5 m

MOUNT

• Invertible wall mount with power splitter bay and cable management

COMPATIBILITY

• Plug-and-play USB connectivity

• Certified for Skype for Business and ready for Teams

• Zoom Certified

• Cisco Compatible

• Compatible with Google Hangouts Meet, BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
